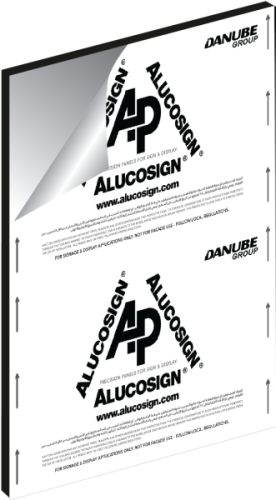

Alucosign

When you need signs that stand out and last, ALUCOSIGN is the answer. Built for perfect flatness, it gives you a smooth, even surface every time. The high-quality paint finish holds strong whether you print directly, apply vinyl, or go old-school with screen printing and hand painting. Easy to work with, tough enough to perform, ALUCOSIGN makes sure your signs look their best, day after day.

Full Details

When you need perfect signs or stylish interiors, ALUCOSIGN delivers. Built for unmatched flatness and easy shaping, it is your go-to choice for top-quality signage. The smooth surface and durable HDPE or PE paint systems hold strong whether you are printing directly, applying vinyl, or using classic screen printing and hand-painting methods.

ALUCOSIGN is not limited to signs. It brings style and strength to kitchens, wardrobes, and interiors, making every space look and feel better. Designed for both beauty and function, it is as versatile as your ideas.

Choose from aluminium skin thicknesses of 0.10 mm, 0.20 mm, and 0.30 mm, with panel thicknesses from 2 millimeters to 4 millimeters. Each panel has two strong aluminium layers bonded to a lightweight core easy to handle, yet rigid enough for large signs, architectural displays, exhibitions, POS/POP setups, digital printing, and photo mounting.

For kitchens, we also offer double-sided ACP panels in 2 mm and 2.8 mm perfect for cabinets, shelves, and more.

Check our latest brochures and technical documents for everything you need to get started.

View Brochures

Applications

ALUCOSIGN is ideal for a wide range of signage applications:

1) Outdoor and indoor signage

2) Advertising panels

3) Retail and showroom displays

4) Exhibition stands

5) POS/POP displays

6) Photo Mounting

7) Graphic panels

Note: It is the buyer’s responsibility to ensure compliance with local government regulations and intended use. ALUCOSIGN is manufactured for signage purposes, use in building facade applications should only be as per applicable laws and approvals in the respective country.

Technical

Here are the sheets sizes and thicknesses available as standard along with the technical specification of LITEPANEL.

Physical Properties
Mechanical Properties
Coating Properties and Performance

	TEST STANDARD	TOLERANCE	RESULT
	TEST STANDARD	TOLERANCE	3MM (0.20MM COIL)	4MM (0.30MM COIL)	4MM (0.20MM COIL)
Panel Thickness	Screw Gauge/Vernier caliper	(±) 0.2 mm	3.0 mm	4.0 mm	4.0 mm
Weight of the Panel	Weighing scale	8.2 ± 0.5 kg/m²- 4mm 11.7 ± 0.5 kg/m² - 6mm	3.85 kg/m²	5.43 kg/m²	4.86 kg/m²
Standard Width	Measuring tape	(±) 2 mm	1220, 1500 mm
Length	Measuring tape	(±) 2 mm	2440 mm up to 6000 mm
Skin Thickness	Screw Gauge/Vernier caliper	(±) 0.03 mm	0.20 mm	0.30 mm	0.20 mm

	TEST STANDARD	REQUIREMENT	RESULT
	TEST STANDARD	REQUIREMENT	3MM (0.20MM COIL)	4MM (0.30MM COIL)	4MM (0.20MM COIL)
Peel oﬀ strength @ 180°	ASTM D 903	≥ 10 kg/25mm	≥ 10 Kg/25mm

	TEST STANDARD	REQUIREMENT	RESULT
	TEST STANDARD	REQUIREMENT	3MM (0.20MM COIL)	4MM (0.30MM COIL)	4MM (0.20MM COIL)
Paint Quality			POLYESTER (PE)
Color Difference Test	ASTM D 2244	ΔE ≤2.0 (reference to master sample)	ΔE ≤2.0 (reference to master sample)
Coating Thickness	ASTM D 1400	2-Coat: 25 ± 3 μm	2-Coat: 25 ± 3 μm
Specular Gloss @60	ASTM D 523-89	±5% (reference to master sample)	±5%
Pencil Hardness	ASTM D 3363	≥ H	≥ H
Solvent Resistance Test (MEK Test)	ASTM D 4752		No removal of paint @ 50 DBR
Coating Flexibility T - Bend Test	ASTM D 4145	≥ 2T without cracks	2T without cracks
Impact Resistance Test 50 kg-cm	ASTM D 2794		No crack and Paint Peel-off

Colours

In addition to our stock range, presenting the ALUCOSIGN colors

1) Above color samples displayed are for reference only, before ordering please double check the color of actual material.

2) To avoid possible reﬂection differences, it is imperative to install the panels in the same direction as marked on the protective film.

3) Please order the total requirements for one particular building in a single order, for metallic and solid colors, an optical change of color shade may occur due to the metallic particles of these lacquers.

4) Tolerance in color between batches: ∆E2.0 in accordance to ISO 7724-3 (EN 1396:1996)

Contact Us

1) Above color samples displayed are for reference only, before ordering please double check the color of actual material.

2) To avoid possible reﬂection differences, it is imperative to install the panels in the same direction as marked on the protective film.

3) Please order the total requirements for one particular building in a single order, for metallic and solid colors, an optical change of color shade may occur due to the metallic particles of these lacquers.

4) Tolerance in color between batches: ∆E2.0 in accordance to ISO 7724-3 (EN 1396:1996)

Contact Us

1) Above color samples displayed are for reference only, before ordering please double check the color of actual material.

2) To avoid possible reﬂection differences, it is imperative to install the panels in the same direction as marked on the protective film.

3) Please order the total requirements for one particular building in a single order, for metallic and solid colors, an optical change of color shade may occur due to the metallic particles of these lacquers.

4) Tolerance in color between batches: ∆E2.0 in accordance to ISO 7724-3 (EN 1396:1996)

Contact Us

1) Above color samples displayed are for reference only, before ordering please double check the color of actual material.

2) To avoid possible reﬂection differences, it is imperative to install the panels in the same direction as marked on the protective film.

3) Please order the total requirements for one particular building in a single order, for metallic and solid colors, an optical change of color shade may occur due to the metallic particles of these lacquers.

4) Tolerance in color between batches: ∆E2.0 in accordance to ISO 7724-3 (EN 1396:1996)

Contact Us
